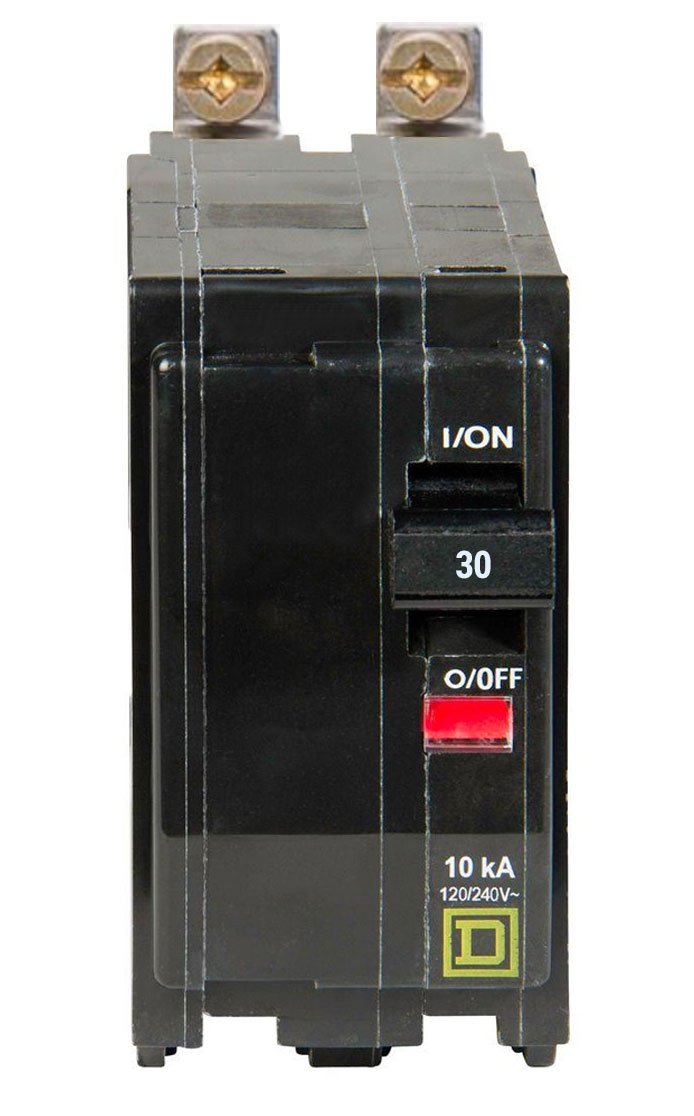

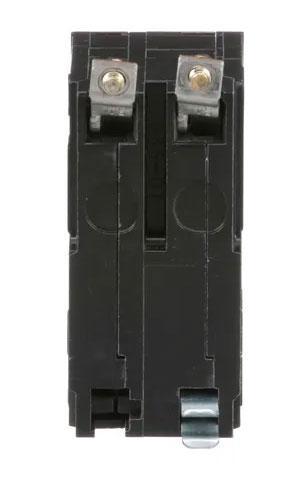

QOB230 – Square D 30 Amp Double Pole Bolt-On Circuit Breaker

$69.12

QOB230 – Square D 30 Amp Double Pole Bolt-On Circuit Breaker

Availability: 25 in stock

QOB230 – Square D 30 Amp Double Pole Bolt-On Circuit Breaker



Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 30 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 – 8 AWG.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 30 A
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting Type: Bolt-on
  • Number of Poles: 2P
  • Circuit Breaker Type: Standard
  • Ratings: HACR rated
  • Electrical Connection: Pressure plate
  • Number of Panel Spaces: 2
  • Wire Size: AWG 14…AWG 8 (copper or aluminium)
  • Height: 3 in
  • Depth: 2.91 in
  • Width: 1.5 in
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Schneider Electric / Square D Product
  • Dimensions (H x W x L): 3″ x 1.5″ x 2.91″

Alt model: q0b230

Connection

Bolt-On

Max Amp

60A

Voltage

120V
