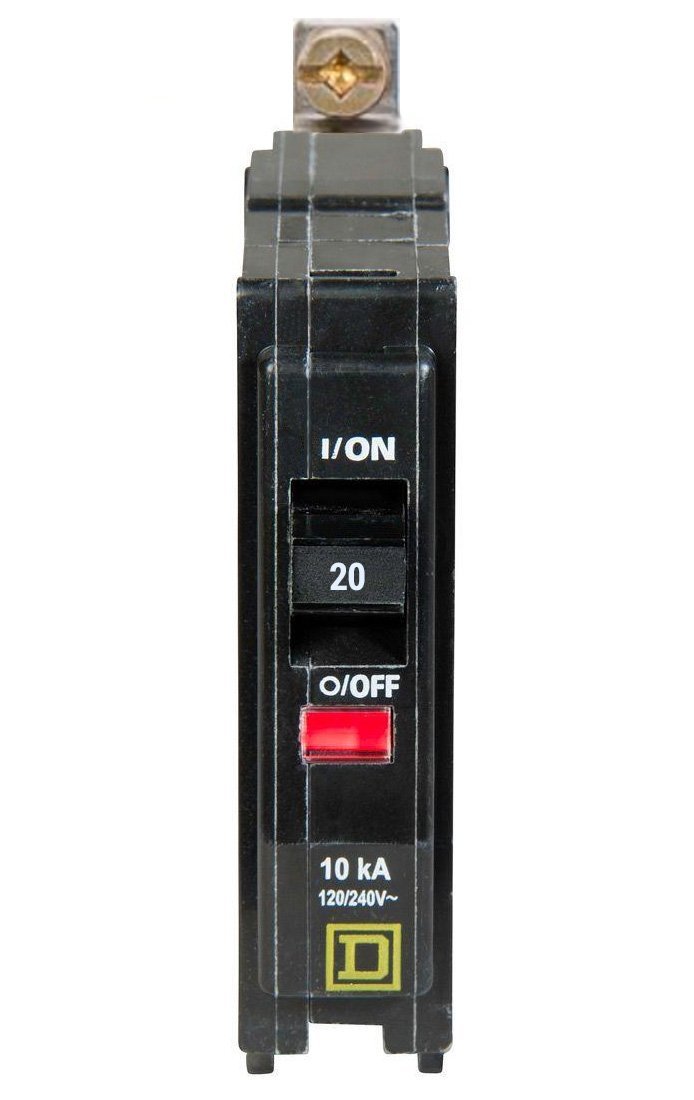

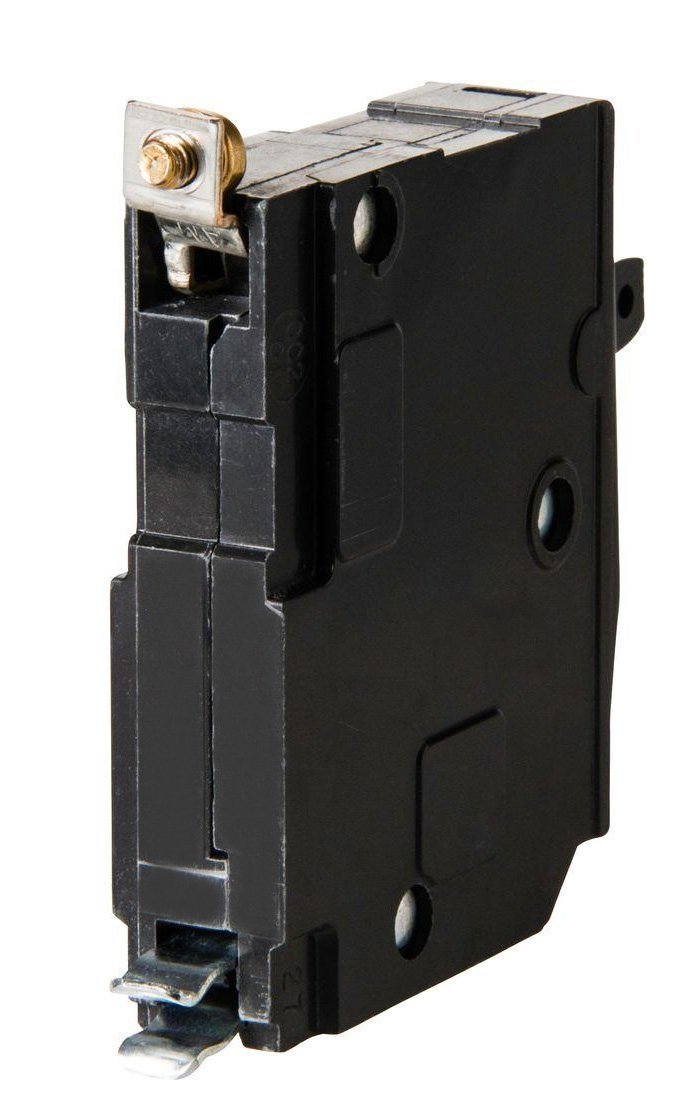

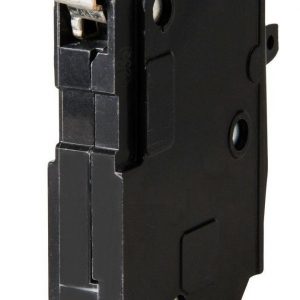

QOB120 – Square D 20 Amp Single Pole Bolt-On Circuit Breaker

$29.05

QOB120 – Square D 20 Amp Single Pole Bolt-On Circuit Breaker

Availability: 25 in stock

SKU: 2F-43RQ-I4OV Categories: , Tag:

QOB120 – Square D 20 Amp Single Pole Bolt-On Circuit Breaker

Square D molded case circuit breaker Its Compact and Easy to Install One Pole and One Phase with Long Time and Instantaneous Functions Circuit Breaker. Circuit Breaker Standard Interrupting Voltage Rating of 120/240 VAC AT 50/60 HZ (UL/CSA) 48 VDC and 20 ampere With Built in Bolt On Connection Thermal Magnetic Protection Molded Case Circuit Breakers.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 20 A
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting Type: Bolt-on
  • Number of Poles: 1P
  • Circuit Breaker Type: Standard
  • Ratings: HACR and Switching Duty rated
  • Number of Panel Spaces: 1
  • Wire Size: AWG 14…AWG 8 (copper or aluminium)
  • Height: 3 in
  • Depth: 2.91 in
  • Width: 0.75 in
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Schneider Electric / Square D Product
  • Dimensions (H x W x L): 3″ x 0.75″ x 2.91″
Connection

Bolt-On

Max Amp

20A

Voltage

120V
