NA225 – Federal Pioneer 25 Amp Double Pole Circuit Breaker (HAS BEEN REPLACED WITH NC0225)

$100.24

NA225 – Federal Pioneer 25 Amp Double Pole Circuit Breaker

Out of stock

SKU: DM-NA225 Categories: , Tag:

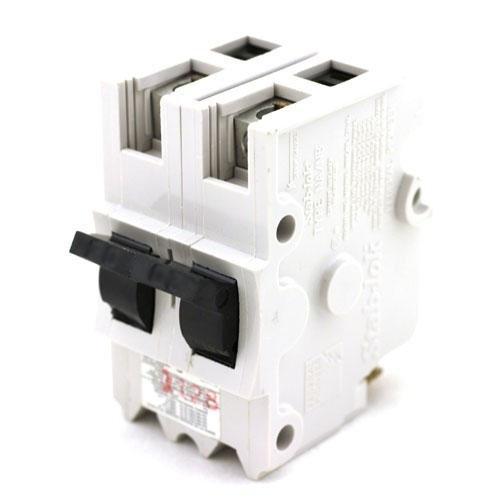

NA225 – Federal Pioneer 25 Amp Double Pole Circuit Breaker





Federal Pacific NA series two pole 25 ampere plug-in stab-lok circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions load side lug terminals.

Specifications:

  • Range of product: Stab-lok
  • Product or component type: Miniature circuit-breaker
  • Line Rated Current: 25 A
  • System Voltage: 120/240 V AC
  • Poles description: 2P
  • Breaking capacity: 10 kA
  • Mounting mode: Plug-in
  • Electrical connection: Screw connector
  • AWG gauge: AWG 14…AWG 2 (copper)
  • Authentic Federal Pioneer Product
Connection

Plug-In

Max Amp

25A

Voltage

120V/240V
