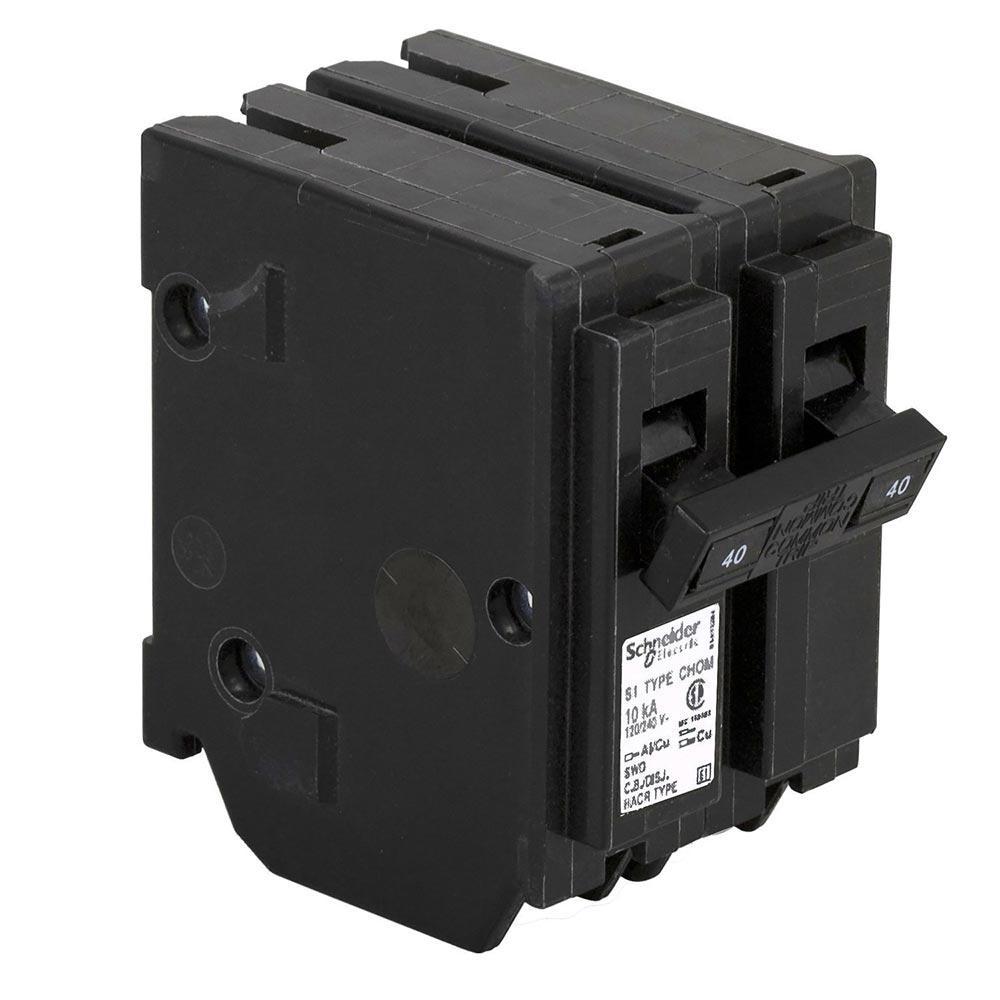

CHOM240 – HomeLine 40 Amp 2 Pole 240 Volt Circuit Breaker
Canadian Homeline Circuit Breakers provide the high level of protection you expect from Schneider Electric. The industry’s best value in circuit protection in a 1 inch wide industry-standard format for one-pole circuit breakers. Homeline breakers feature Qwik-Open circuit breakers, which give homeowners a new standard for reliable, fast acting circuit protection. Typical application for a double pole 40 Amp breaker include overload and short circuit protection for electric ranges.
Specifications:
- Brand: Homeline
- Family: SI Type CHOM
- Voltage (V): 120/240
- Amperage: 40 Amp
- Amp Rating: 40A
- Pole: (2P) Double Pole
- Breaker Style: PLUG-IN
- Length (in): 2.5
- Width (in): 2
- Height (in): 3.75
- Operates: HACR rated, Screw clamp terminals
- Wire Gauge: 14-8 AWG
- Type: HACR rated, Screw clamp terminals
- UL Listed: CSA, UL Listed
- Cross Refefence: CHOM240CP
- Authentic HomeLine Product
- Dimensions (H x W x L): 3.75″ x 2″ x 2.5″
