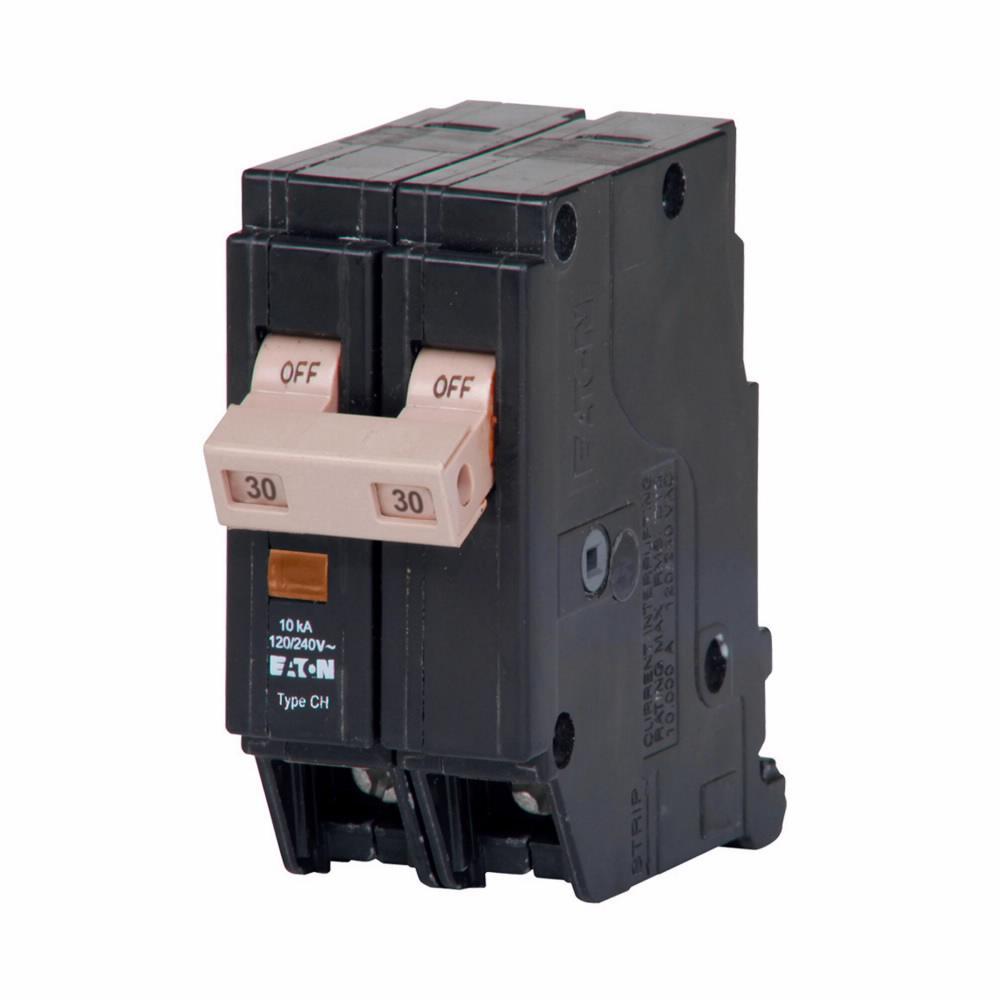

CHF230 – Eaton Cutler-Hammer 30 Amp 2 Pole 240 Volt Plug-In Molded Case Circuit Breaker

$59.69

CHF230 – Eaton Cutler-Hammer 30 Amp 2 Pole 240 Volt Plug-In Molded Case Circuit Breaker

Availability: 25 in stock

CHF230 – Eaton Cutler-Hammer 30 Amp 2 Pole 240 Volt Plug-In Molded Case Circuit Breaker



CHF230 – Eaton Cutler-Hammer Plug-In Molded Case Circuit Breaker

Cutler Hammer CHF series double pole 30 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions with mechanical trip flag.

Specifications:

  • Product Name: Type CHF 3/4-inch Standard Circuit Breaker
  • Product Length: 3 IN
  • Product Height: 3 IN
  • Product Width: .75 IN
  • Product Weight: .28 LB
  • Certifications: UL 489
  • Catalog Notes: HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
  • Interrupt Rating: 10 kAIC
  • Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
  • Used With: Type CH Loadcenters
  • Main Circuit Breaker: CH
  • Voltage Rating: 120/240V
  • Amperage Rating: 30A
  • Trip Type: Common
  • Number Of Poles: Two-pole
  • Authentic Eaton/Cutler-Hammer Product
  • Dimensions (H x W x L): 3″ x 0.75″ x 3″
Connection

Plug-In

Max Amp

30A

Voltage

120V/240V
