CHF120 – Eaton Cutler-Hammer 20 Amp 1 Pole 240 Volt Molded Case Circuit Breaker

$29.69

CHF120 – Eaton Cutler-Hammer 20 Amp 1 Pole 240 Volt Molded Case Circuit Breaker

Availability: 25 in stock

SKU: DM-CHF120 Categories: , Tag:

CHF120 – Eaton Cutler-Hammer 20 Amp 1 Pole 240 Volt Molded Case Circuit Breaker

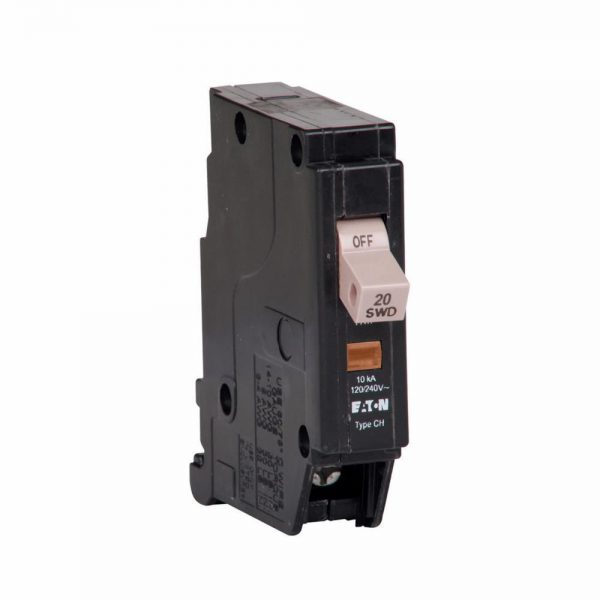

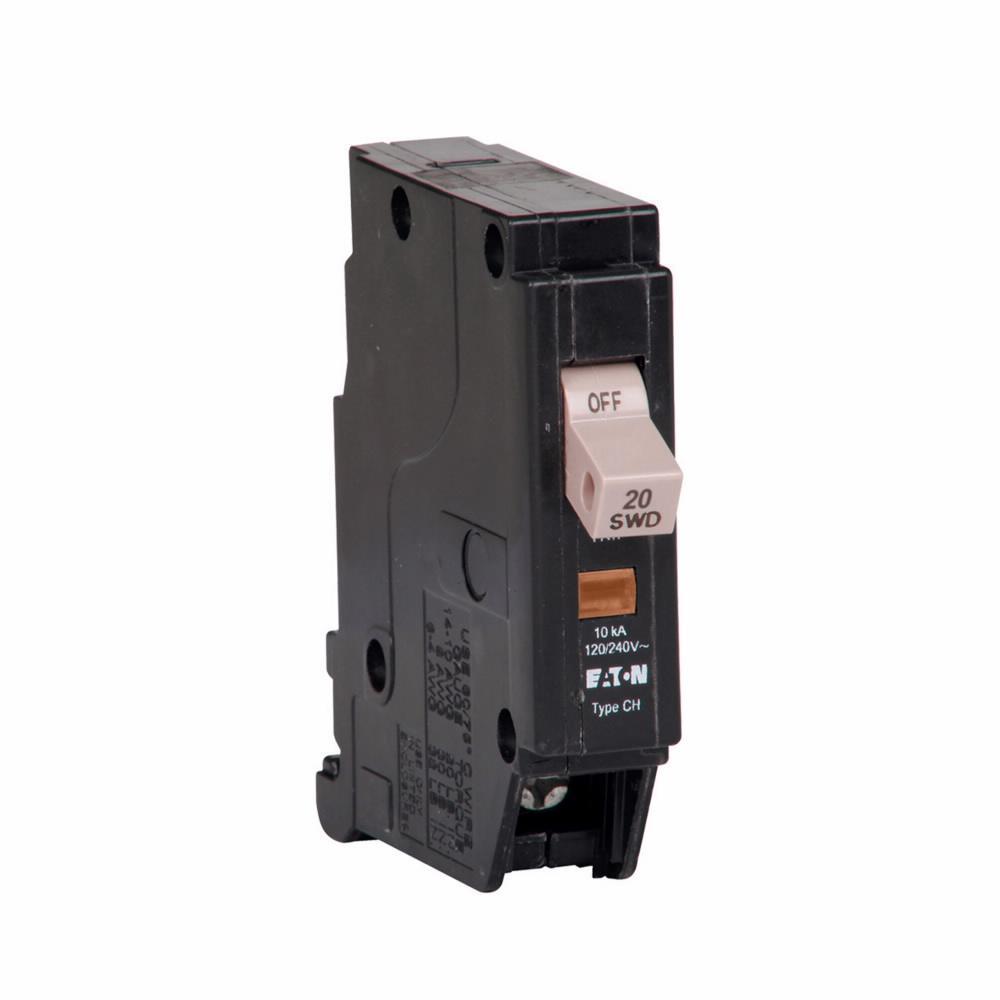

CHF120 – Eaton Cutler-Hammer Molded Case Circuit Breaker

This product is a molded case circuit breaker 1-Pole Plug-on circuit breaker has current rating of 20 Amps and voltage rating of 120/240 VAC. Circuit breaker has AIC rating of 10 kilo-Amps. It accommodates wires of size 14 – 8/14 – 10 AWG. It has unique trip to off and one step reset feature with a trip flag to indicate the breaker status.

Specifications:

  • Product Name: Type CHF 3/4-inch Standard Circuit Breaker
  • Product Length: 3 IN
  • Product Height: 3 IN
  • Product Width: .75 IN
  • Product Weight: .28 LB
  • Certifications: UL 489
  • Catalog Notes: Switching Duty Rated, HACR Rated, Single-Pole Requires One 3/4-Inch Space, With Trip Indication
  • Interrupt Rating: 10 kAIC
  • Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
  • Used With: Type CH Loadcenters
  • Main Circuit Breaker: CH
  • Voltage Rating: 120/240V
  • Amperage Rating: 20A
  • Number Of Poles: Single-pole
  • Authentic Eaton/Cutler-Hammer Product
  • Dimensions (H x W x L): 3″ x 0.75″ x 3″
Connection

Plug-In

Max Amp

20A

Voltage

120V/240V
