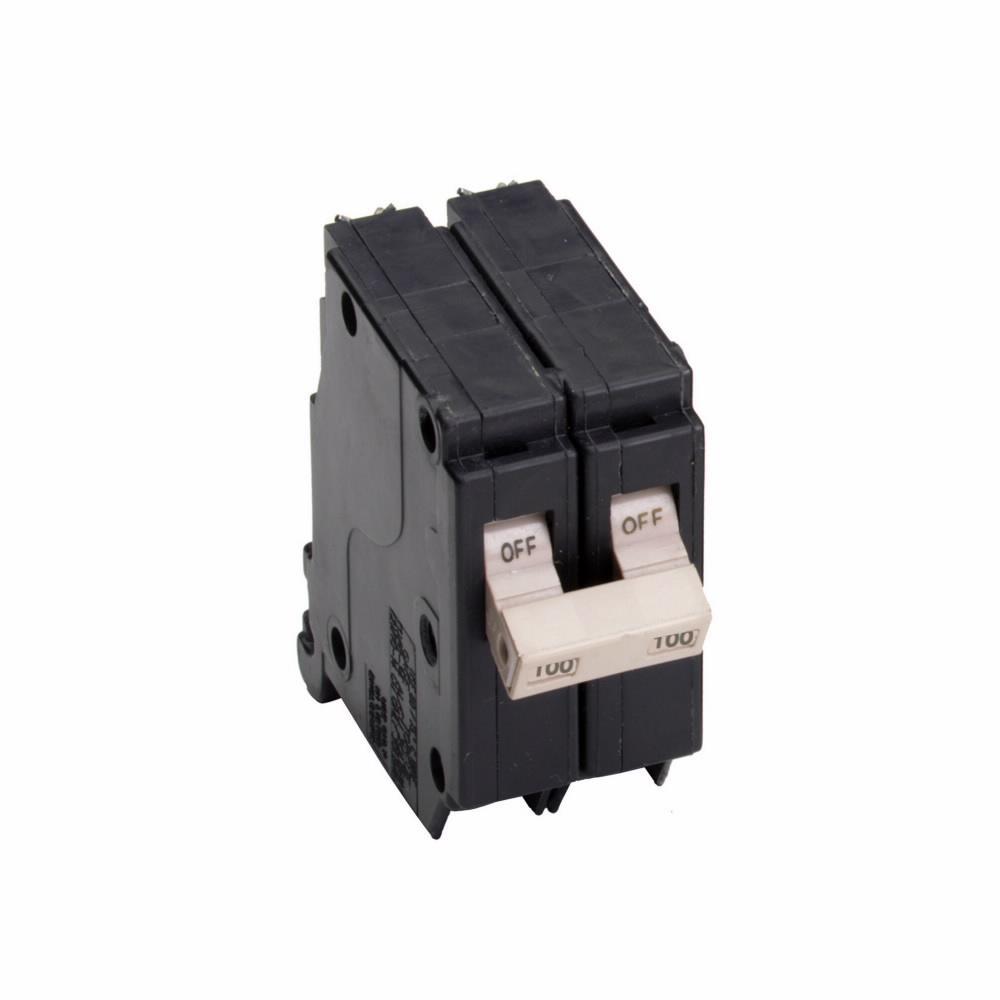

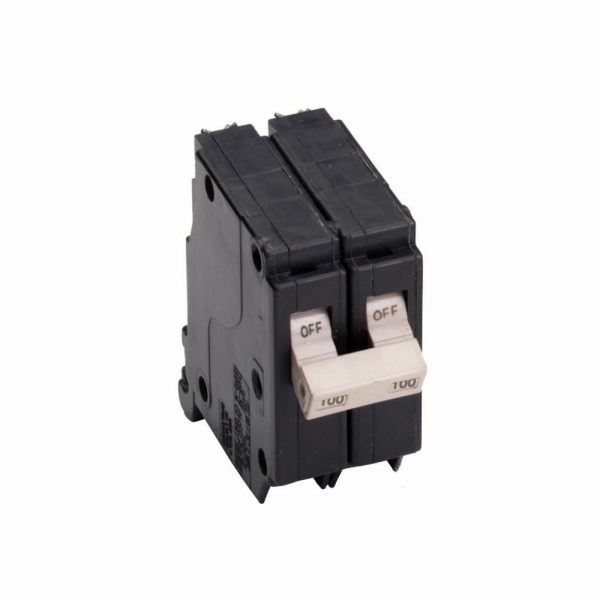

CH2100 – Eaton Cutler-Hammer 100 Amp 2 Pole 240 Volt Plug-In Circuit Breaker

$235.62

CH2100 – Eaton Cutler-Hammer 100 Amp 2 Pole 240 Volt Plug-In Circuit Breaker

Availability: 25 in stock

SKU: DM-CH2100 Categories: , Tag:

CH2100 – Eaton Cutler-Hammer 100 Amp 2 Pole 240 Volt Plug-In Circuit Breaker



Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 100 amps and voltage rating of 120/240 Vac it is a common trip breaker that has AIC rating of 10000 ampere and it can accommodate a wire size of 10-1/0 AWG at load circuit breakers is UL 489 listed and Csa certified.

Specifications:

  • Product Name: Type CCV Tenant Main Circuit Breaker
  • Product Length: 8 IN
  • Product Height: 5.5 IN
  • Product Width: 4.5 IN
  • Product Weight: 2.5 LB
  • Certifications: UL 489
  • Catalog Notes: Terminals-Standard Lugs (Wire Connectors) Suitable For Copper Or Aluminum Wire
  • Interrupt Rating: 10 kAIC
  • Wire Size: #2/0 AWG-300 kcmil Cu/Al
  • Used With: Type ECC Unit Enclosures
  • Main Circuit Breaker: CCV
  • Voltage Rating: 120/240V
  • Amperage Rating: 225A
  • Number Of Poles: Two-pole
  • Authentic Eaton/Cutler-Hammer Product
  • Dimensions (H x W x L): 5.5″ x 4.5″ x 8″
Connection

Plug-In

Max Amp

100A

Voltage

120V/240V
