BAB1020S – Cutler-Hammer 20 Amp 1 Pole 240 Volt Miniature Shunt Trip Breaker

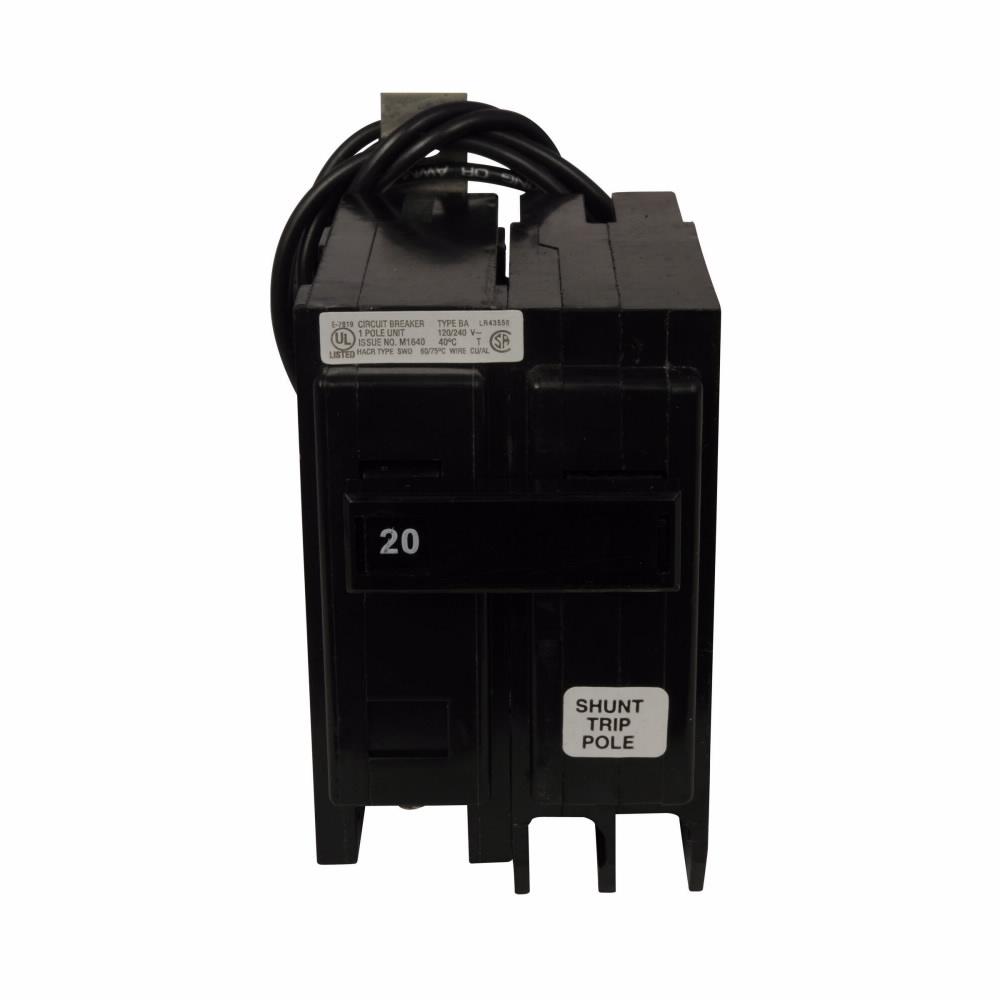

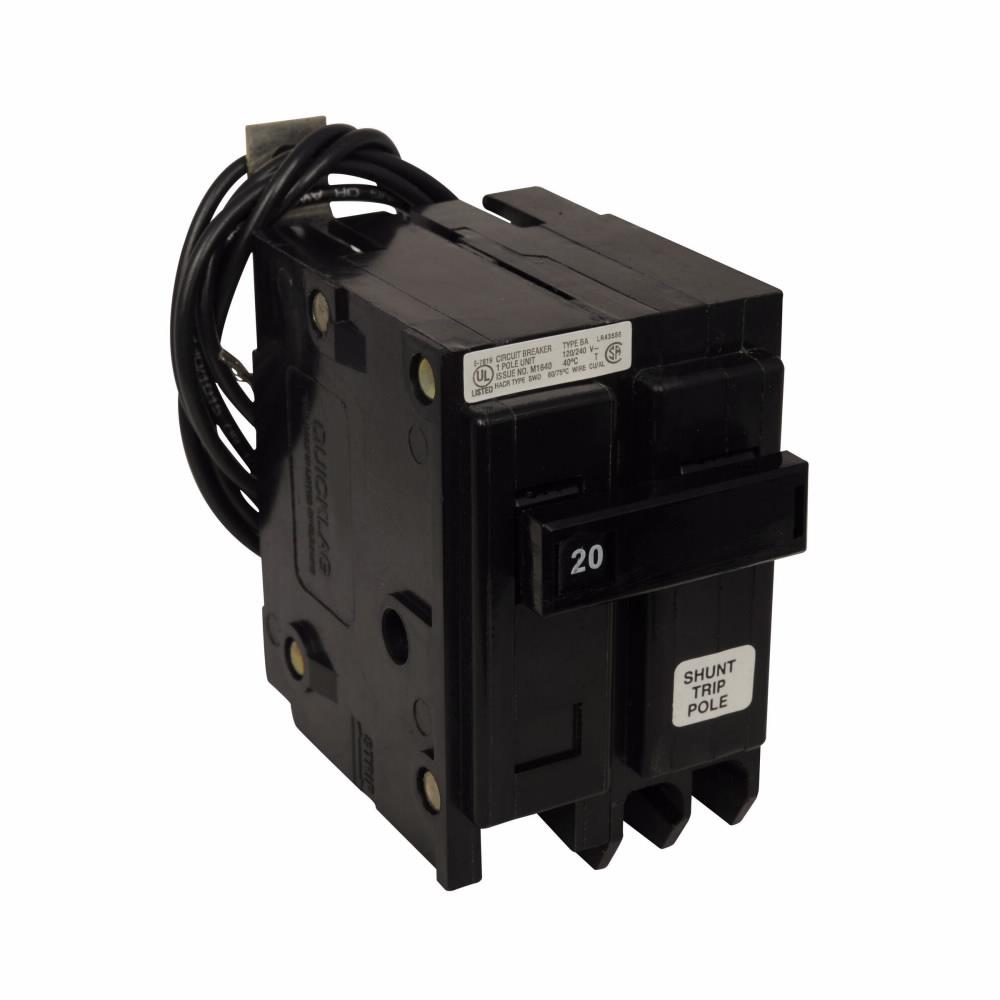

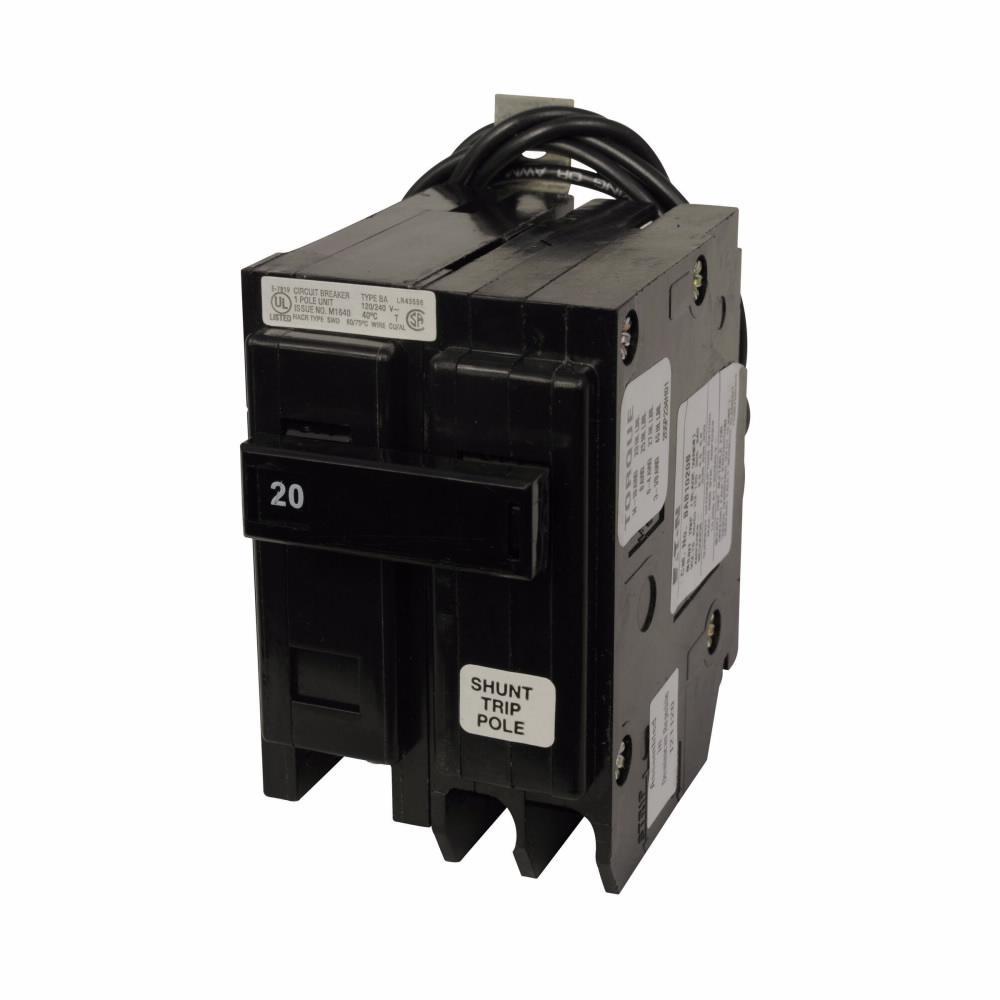

BAB1020S – Cutler-Hammer Miniature Shunt Trip Breaker
Eaton / Cutler-Hammer Shunt Trip Breaker Its Compact And Easy to Install BAB Type one pole thermal-magnetic circuit breaker has a current rating of 20 amps at 40 deg c and voltage rating of 120/240Vac it has an an interrupt current rating of 10000 kilo-amps at 120/240 Vac 5000 ampere at 24 to 48 Vdc 3800 ampere at 62.5 Vdc with 120/208/240 Vac shunt trip it accommodates aluminum/copper wire of size 14 – 4 AWG and breaker is Ul 489 listed and Csa certified.
Specifications:
- Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
- Product Length: 3.9 in
- Product Height: 4.8 in
- Product Width: 2.2 in
- Product Weight: 1 lb
- Certifications: UL Listed , CSA Certified
- Csa Certified: CATALOG NOTES
- Catalog Notes: HACR rated
- Product Specifications: Mounting
- Mounting: Bolt-on
- Special Features: 120V, 208V, 240V shunt trip
- Interrupt Rating: 10 kAIC
- Type: Quicklag
- Circuit Breaker Type: BAB
- Quantity: Q7
- Voltage Rating: 120/240V
- Amperage Rating: 20A
- Trip Type: Non-Interchangeable
- Number Of Poles: Single-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 4.8″ x 2.2″ x 3.9″
