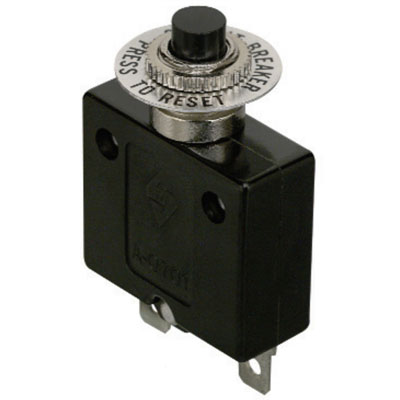

35-2103- GC WALDOM Circuit Breaker 3A
The circuit will remain discontinued until manually reset. Provides permanent protection in electrical equipment. All are UL approved and CSA certified. Hardware included.
-Calibration: Will carry continuously 100% of rating. Will trip between 6-30 seconds at 200% of rated load at 25 degrees C.
-Dielectric Strength: Over 1500 Volts RMS
-Max. Operating Voltage: 50V/DC, 250V/AC
-Interrupt Capacity: 2000 Amps at 50V/DC 1000 Amps at 250C/AC
-Terminals: 250″ Quick Connect
-Mounting: 0.500″
